General Information

Manufacturer: Tripp Lite
Manufacturer Part Number: ECO550UPS
Manufacturer Website Address:
Brand Name: Tripp Lite
Product Series: ECO
Product Model: ECO550UPS

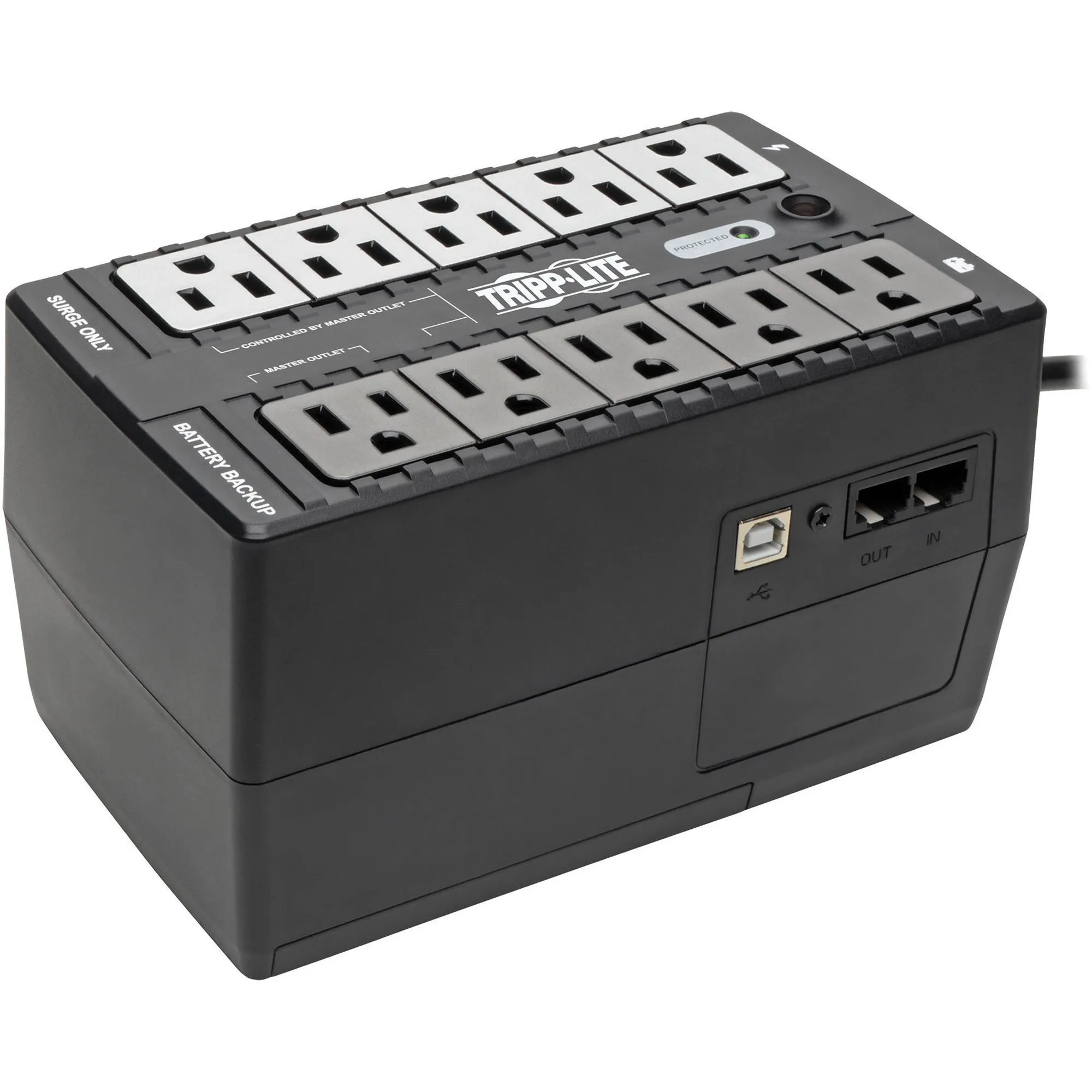

Product Name: ECO550UPS 550VA Desktop UPS
Marketing Information: Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
Packaged Quantity: 1 Each
Product Type: Standby UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 10 x NEMA 5-15R
Dataline Protection: RJ-11
Protection Type:

• EMI / RFI
• Brownout
• Power Failure

Cord Length: 6 ft

Power Description

Load Capacity: 550 VA/300 W
Input Voltage: 120 V AC
Output Voltage:

• 110 V AC
• 115 V AC
• 120 V AC

Waveform Type: Sine Wave
Surge Energy Rating: 316 J

Management

Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators

Status Indicators: 2 LED Indicator:

• Line power
• Battery power status

Main Power Switch Controls :

• ON
• OFF
• SELF-TEST
• ALARM CANCEL
• Second switch enables "ECO" outlet switching

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 1.20 Minute
Backup/Run Time (Half Load): 5 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 15 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)
Sound Emission: 40 dB
Thermal Dissipation: 1.17 W

Physical Characteristics

Color: Black
Height: 3.1"
Width: 5.7"
Depth: 10.9"
Form Factor:

• Desktop
• Wall Mountable

Weight (Approximate): 6.60 lb

Miscellaneous

Package Contents:

• 550VA Standby UPS
• ECO550UPS UPS System
• USB Cable
• Instruction manual with warranty information

Additional Information:

• Keyhole mounting slots enable wall-mount installation
• Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
• Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
• Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decerases to 135V or lower
• Basic desktop PCs for home/home-office use, network terminals, audio/video and home entertainment systems and other sensitive electronic devices
• 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes

Certifications & Standards: Tested to :

• UL1778 (USA)
• CSA (Canada)
• NOM (Mexico)
• Class B (EMI)
• FCC Part 68 / Industry Canada (telecommunication)

Software Included: PowerAlert software available via free download
Recycled: No
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR 2.0
Country of Origin: China

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

• 2 year
• 100,000 connected equipment guarantee
