More Value for Creators

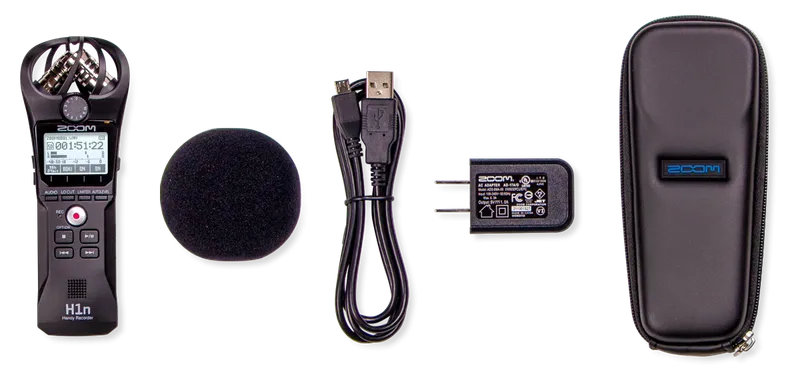

The H1n is loved by musicians, podcasters and filmmakers because of its incredible audio, ease of use and small size. Now the H1n-VP includes a padded shell case, micro USB cable, AD-17 Power Adapter and foam windscreen, offering creators more value than ever before.
Maximum Capacity
The H1n is battery-powered and offers up to 10 hours of recording time. Put it in your pocket, toss it in your backpack, or mount it to a camera — the H1n travels wherever you do.

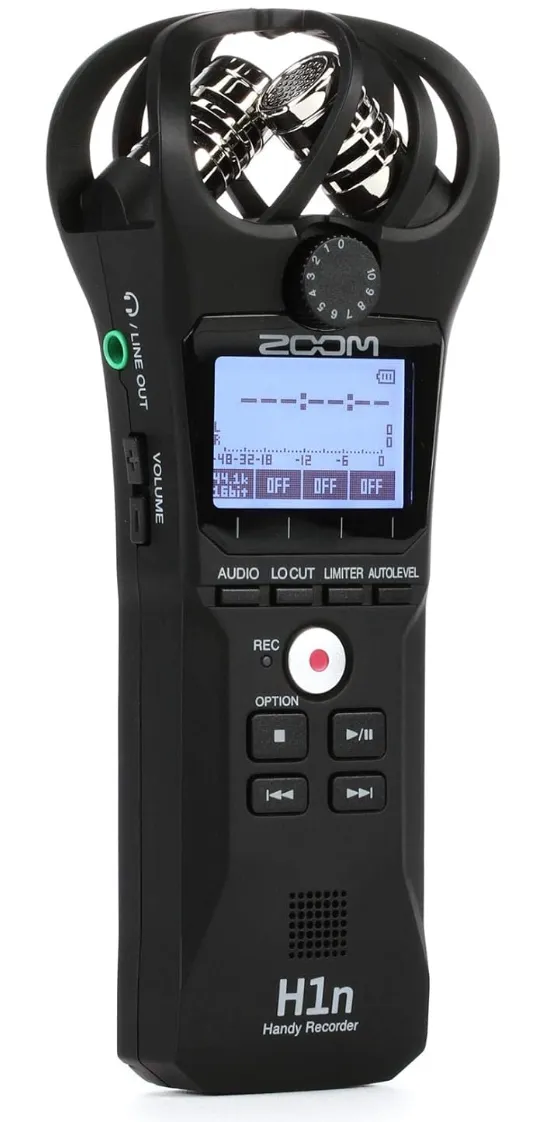

Features of the H1n
- One-touch button controls
- 1.25” monochrome LCD display
- Intuitive menus for easy operation
- Stereo X/Y 90˚microphones handle up to 120 dB SPL
- Stereo ⅛" Mic/Line In mini phone jack
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- Limiter button for input signal up to 120 dB SPL
- Playback Speed Control, Voice Emphasize Filter, and Stereo Bounce functions
- Auto-Record, Pre-Record, and Self-Timer functions
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Tone generator for filmmaking use with DSLR and video cameras
- Records directly to SD and SDHC cards up to 32 GB
- Micro USB port for data exchange to and from computer and use as an audio interface
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 10 hours of operation with alkaline batteries
Specs
| SIMULTANEOUS PLAYBACK TRACKS: | 2 |
| SIMULTANEOUS RECORDING TRACKS: | 2 |
| FUNCTIONS: | Lo-cut Filter, Limiter,Test Tone,Slate-Tone,Voice Emphasize |
| Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing | |
| RECORDING FORMATS: | WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 |
| kHz/24-bit | |
| A/D CONVERSION: | 24-bit, 128x oversampling |
| D/A CONVERSION: | 24-bit, 128x oversampling |
| SIGNAL PROCESSING: | 32-bit |
| RECORDING MEDIA: | microSD/microSDHC cards (Class 4 or higher, up to 32 |
| GB | |
| DISPLAY: | 1.25" monochrome LCD (96 × 64) |
| BUILT-IN STEREO MIC: | Unidirectional condenser, 90° XY stereo format |
| Gain: -∞ dB to 39 dB | |
| Maximum sound pressure level: 120 dB SPL | |
| INPUTS: | 1/8" stereo phone jack |
| Rated input level: -∞ dB to -39 dBm | |
| Input impedance: 2 kΩ | |
| Plug-in power supported (2.5 V) | |
| BUILT-IN SPEAKER: | Built-in 500 mW mono speaker |
| Output impedance: 8 Ω | |
| OUTPUTS: | 1/8" stereo phone jack (combined line/headphones) |
| Rated output level: 20 mW 20 mW into 32Ω load | |
| Output impedance: 10 kΩ or more | |
| MICROUSB: | Connector: USB2.0 Micro-B |
| Card reader: USB 2.0 High Speed | |
| Audio interface: USB 1.1 Full Speed / Specifications: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out (USB class compliant) / Transfer method: asynchronous | |
| Supported cable: USB2.0 Micro-B cable / * Use cables for data transfer. Cables for battery-charging cannot be used for the above purpose. | |
| Supported OS Windows: Windows 8 / 8.1 / 10 / 11, Mac: Mac OS X 10.10 ~ macOS 13 | |
| POWER REQUIREMENTS: | 2 AAA batteries (alkaline, nickel-metal hydride rechargeable, |
| or lithium) | |
| AC adapter (ZOOM AD-17): DC 5V/1A | |
| USB bus power | |
| BATTERY LIFE (ALKALINE BATTERIES): | Approximately 10 hours |
| (continuous recording time using built-in mic, 44.1 kHz/16-bit) | |
| DIMENSIONS: | 1.9 in (W) x 5.4 in (D) x 1.2 in (H) |
| 50 mm (W) × 137.5 mm (D) × 32 mm (H) | |
| WEIGHT: | 0.13 lbs / 60 g (without batteries) |
